View larger
Images are for illustrative purposes only. Please refer to data sheet for details

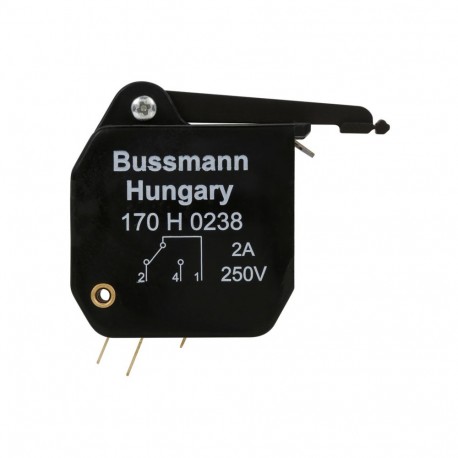

MICROSWITCH T1 5A 250V 000-3 170H0238 EATON ELECTRIC Microswitch, ultra-fast, 2 A, AC 250 V, type T indicato..
MICROSWITCH T1 5A 250V 000-3
170H0238
170H0238
EATON - MOELLER
12 Pcs.
Microswitch, ultra-fast, 2 A, AC 250 V, type T indicator, 2.8 x 0.5 lug dimensions
MICROSWITCH T1 5A 250V 000-3
Eaton Bussmann series high speed microswitch, 700V (UL), 690V (IEC), 5A, With Indicator, FuseAccessory, 2.80 mm X 0.50 mm Lug
Fuse accessory, Microswitch, high speed, 2 A, AC 250 V, type T indicator, 2.8 x 0.5 lug dimensions, indicator style T for microswitch
Automation > Accessories/spare parts for Low Voltage HRC fuse bases
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series high speed microswitch
Catalog Number
170H0238
EAN
5027590439084
UPC
051712814461
Product Length/Depth
57 mm
Product Height
47 mm
Product Width
20 mm
Product Weight
28.33333333 g
Compliances
Contact factory
CE Marked
GoST-R
RoHS Compliant
CE Marked
GoST-R
RoHS Compliant
Electrical data
Amperage Rating
2 A
Voltage rating
250 V
Product specification
Suitable for
DIN 43653 Type T size 000 fuses
DIN 43620 size 000 fuses
DIN 43620 aR size 00 fuses
DIN 43620 size 3 fuses
DIN 43620 aR sizes 1* to 2 fuses
French style Type T size 1* to 3 fuses
DIN 43620 size 000 fuses
DIN 43620 aR size 00 fuses
DIN 43620 size 3 fuses
DIN 43620 aR sizes 1* to 2 fuses
French style Type T size 1* to 3 fuses
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
| Construction size (EF002566) | Other |
