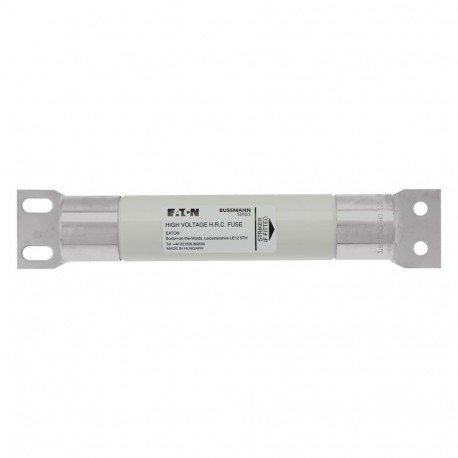

EATON - MOELLER 3.6KV 80Amp 2" MOTORSTART FUSE 3.6KV 80Amp 2" MOTORSTART FUSE 3.6WDFHL80 3-6WDFHL80 EATON ELECTRIC Motor fuse-link, medium voltage, 63 A, A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 80Amp 2" MOTORSTART FUSE 3.6WDFHL80 3-6WDFHL80 EATON ELECTRIC Motor fuse-link, medium voltage, 63 A, A..

3.6KV 80Amp 2" MOTORSTART FUSE

3.6WDFHL80

3-6WDFHL80

EATON - MOELLER

3 Pcs.

Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker, no tags 3.6KV 80Amp 2" MOTORSTART FUSE 3.6KV 80Amp 2" MOTORSTART FUSE - Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 50 kA, 51 x 254 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker, cylindrical, offset bolted tags, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 50 kA, 51 x 254 mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker, cylindrical, offset bolted tags, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
80 A
Rated voltage
AC 3.6 kV
Size
51 x 254 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
50 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical
offset bolted tags
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
80 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Motor protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

ETIM for 3.6WDFHL80 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 80 A
Rated voltage (EF000228) 3.6 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 0.05 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Motor protection
Length (EF001438) 254 mm
Diameter (EF000551) 51 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) British Standard
Release characteristic (EF000889) Other
Installation technique (EF001474) Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
