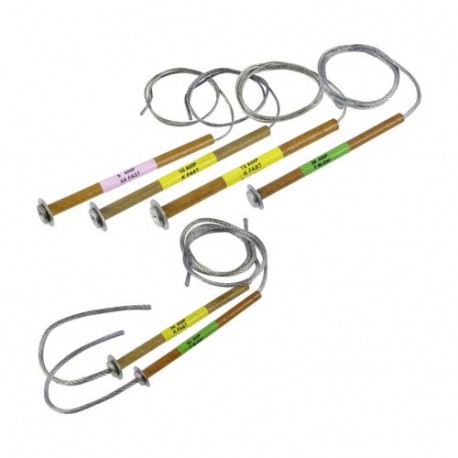

EATON - MOELLER 46KV 65 AMP LINK 46KV 65 AMP LINK 46KU65 EATON ELECTRIC Expulsion fuse-link, medium voltage, 8 A, AC 15 kV, 533 mm, ANSI, K f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

46KV 65 AMP LINK 46KU65 EATON ELECTRIC Expulsion fuse-link, medium voltage, 8 A, AC 15 kV, 533 mm, ANSI, K f..

46KV 65 AMP LINK

46KU65

46KU65

EATON - MOELLER

10 Pcs.

Expulsion fuse-link, medium voltage, 8 A, AC 15 kV, 533 mm, ANSI, K fast, style D termination 46KV 65 AMP LINK

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a 46KV 65 AMP LINK 46KU65 EATON ELECTRIC Expulsion fuse-link, medium voltage, 8 A, AC 15 kV, 533 mm, ANSI, K f.., this medium voltage expulsion fuse-link is applied in utility distribution networks to disconnect faulted equipment from the power source. The replaceable element protects assets against destructive short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 65 A
  • Rated voltage (EF000228): 46 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): K
  • Type of termination (EF012540): Universal
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46KU65
EAN
5027590481458
UPC
051712398053
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
141.1 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
65 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
787 mm
Standard
ANSI
Type of termination
Universal
Color
Yellow

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
