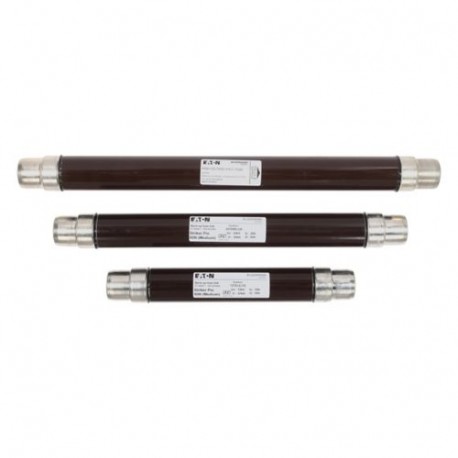

7.2KV 25Amp 2" DIN Sealed Fuse 7.2TDLSJ25 7-2TDLSJ25 EATON ELECTRIC Fuse-link, medium voltage, 50 A, AC 12 k..

7.2KV 25Amp 2" DIN Sealed Fuse

7.2TDLSJ25

7-2TDLSJ25

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 50 A, AC 12 kV, 3", 77 x 292 mm, full-range, DIN 7.2KV 25Amp 2" DIN Sealed Fuse 7.2KV 25Amp 2" DIN Sealed Fuse - Fuse-link, medium voltage, 25 A, AC 7.2 kV, 40 kA, 2", 51 x 292 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 25 A, AC 7.2 kV, 2z, 51 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for integration into enclosed switchgear assemblies, the Eaton Moeller 7.2KV 25Amp 2" DIN Sealed Fuse (7.2TDLSJ25) offers dependable primary side transformer protection. Sealed medium-voltage fuses protect internal elements from harsh environmental conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 25 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
7.2TDLSJ25
EAN
5027590488334
UPC
051712173094
Product Length/Depth
292 mm
Product Height
51 mm
Product Width
51 mm
Product Weight
1630 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1

Electrical data

Amperage Rating
25 A
Voltage rating
7.2 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
32.6 Ohms
Watt losses
28 W

Product specifications

Fuse indicator
With Striker
Construction size
51 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354710 Fuse clip

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
