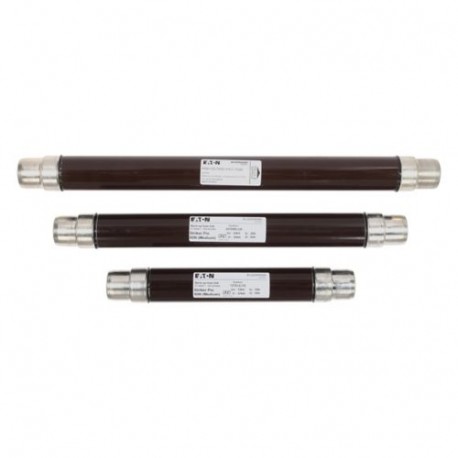

EATON - MOELLER 3.6KV 40Amp 2" 'J' DIN Fuse ADO 3.6KV 40Amp 2" 'J' DIN Fuse ADO 3.6ADOSJ40 3-6ADOSJ40 EATON ELECTRIC Fuse-link, medium voltage, 50 A, AC 12 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 40Amp 2" 'J' DIN Fuse ADO 3.6ADOSJ40 3-6ADOSJ40 EATON ELECTRIC Fuse-link, medium voltage, 50 A, AC 12 ..

3.6KV 40Amp 2" 'J' DIN Fuse ADO

3.6ADOSJ40

3-6ADOSJ40

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 50 A, AC 12 kV, 3", 77 x 292 mm, full-range, DIN 3.6KV 40Amp 2"" 'J' DIN Fuse ADO 3.6KV 40Amp 2" 'J' DIN Fuse ADO - Fuse-link, medium voltage, 40 A, AC 3.6 kV, 40 kA, 2", 51 x 192 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 40 A, AC 3.6 kV, 2z, 51 x 192 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number 3.6KV 40Amp 2" 'J' DIN Fuse ADO is a fuse-link, medium voltage utilized for primary transformer protection in electrical power distribution systems. The unit is built to safely clear short-circuit faults in air-insulated environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 40 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 192 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
3.6ADOSJ40
EAN
5027590473750
UPC
051712797566
Product Length/Depth
192 mm
Product Height
54 mm
Product Width
51 mm
Product Weight
1100 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1

Electrical data

Amperage Rating
40 A
Voltage rating
3.6 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
11.6 Ohms
Watt losses
26 W

Product specifications

Fuse indicator
With Striker
Construction size
51 x 192 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354710 Fuse clip
