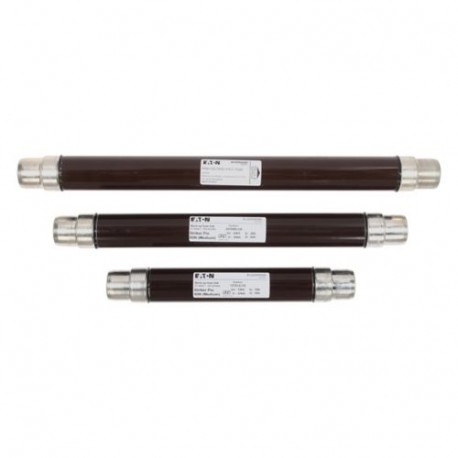

EATON - MOELLER 3.6KV 31.5Amp 2" 'J' DIN Fuse 3.6KV 31.5Amp 2" 'J' DIN Fuse 3.6ADOSJ31.5 3-6ADOSJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 50 A, AC 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 31.5Amp 2" 'J' DIN Fuse 3.6ADOSJ31.5 3-6ADOSJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 50 A, AC 1..

3.6KV 31.5Amp 2" 'J' DIN Fuse

3.6ADOSJ31.5

3-6ADOSJ31-5

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 50 A, AC 12 kV, 3", 77 x 292 mm, full-range, DIN 3.6KV 31.5Amp 2" 'J' DIN Fuse 3.6KV 31.5Amp 2" 'J' DIN Fuse - Fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 40 kA, 2", 51 x 192 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 2z, 51 x 192 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Deployment of the Eaton Moeller 3.6KV 31.5Amp 2" 'J' DIN Fuse provides reliable primary side protection for medium voltage transformers against potential electrical overloads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 31.5 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 192 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲
Fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 40 kA, 2", 51 x 192 mm, back-up, DIN, with striker
Fuse, Fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 2", 51 x 192 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
medium voltage
Rated current [I]
31.5 A
Rated voltage
AC 3.6 kV
Construction size
2"
Size
51 x 192 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
transformer protection
indoor use
Standard/Approval
DIN
Standards/Regulations
DIN 43625
VDE 0670-4
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
31.5 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Primary side transformer protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
DIN
Release characteristic
Other
Installation technique
Air
