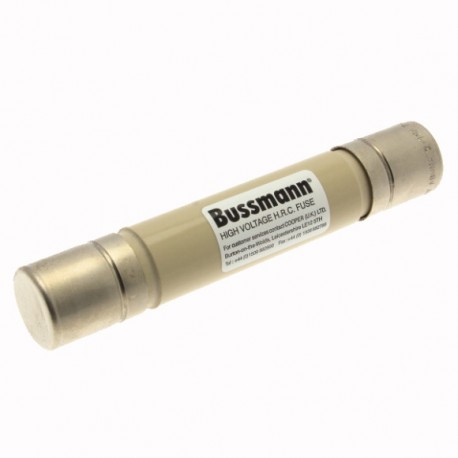

EATON - MOELLER 3.6KV 6.3AMP 1" '22' VT FUSE 3.6KV 6.3AMP 1" '22' VT FUSE 3.6ABWN226.3 3-6ABWN226-3 EATON ELECTRIC 2x Auxilliary compartment (cable area).. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 6.3AMP 1" '22' VT FUSE 3.6ABWN226.3 3-6ABWN226-3 EATON ELECTRIC 2x Auxilliary compartment (cable area)..

3.6KV 6.3AMP 1" '22' VT FUSE

3.6ABWN226.3

3-6ABWN226-3

EATON - MOELLER

20 Pcs.

2x Auxilliary compartment (cable area), HxW=700x400mm 3.6KV 6.3AMP 1" '22' VT FUSE 3.6KV 6.3AMP 1" '22' VT FUSE - VT fuse-link, medium voltage, 6.3 A, AC 3.6 kV, 50 kA, 25.4 x 142 mm, back-up, BS, IEC, 5/16" BSW stud one end Fuse, VT fuse-link, medium voltage, 6.3 A, AC 3.6 kV, 25.4 x 142 mm, back-up, BS, IEC, cylindrical, 5/16z BSW stud one end, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect auxiliary transformer circuits within medium voltage electrical setups with the Eaton Moeller 3.6KV 6.3AMP 1" '22' VT FUSE. These devices are integrated into switchgear and control cabinets to isolate fault currents and maintain safe operational standards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 6.3 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 142 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
VT fuse-link, medium voltage, 6.3 A, AC 3.6 kV, 50 kA, 25.4 x 142 mm, back-up, BS, IEC, 5/16" BSW stud one end
Fuse, VT fuse-link, medium voltage, 6.3 A, AC 3.6 kV, 25.4 x 142 mm, back-up, BS, IEC, cylindrical, 5/16" BSW stud one end, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Delivery program

Product range
Fuse
Basic function
VT fuse-link
Field of application
medium voltage
Rated current [I]
6.3 A
Rated voltage
AC 3.6 kV
Size
25.4 x 142 mm
Utilization category
back-up
Description
5/16" BSW stud one end
Breaking Capacity
50 kA
usable for size/applications
voltage and auxiliary transformers
Standard/Approval
BS
IEC
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
6.3 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Auxiliary transformer protection
Length
254 mm
Diameter
25.4 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air
