> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 3.6ADOH4631.5

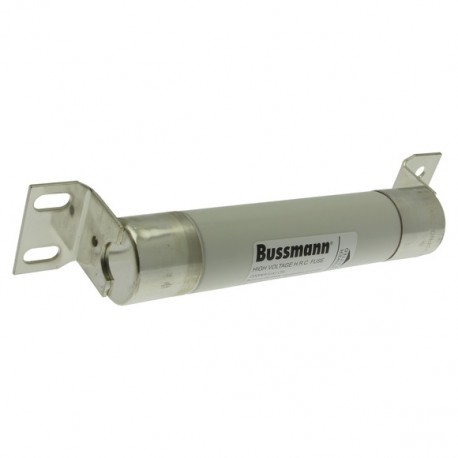

EATON - MOELLER 3.6KV 31.5AMP 2" AIR FUSE 3.6KV 31.5AMP 2" AIR FUSE 3.6ADOH4631.5 EATON ELECTRIC Air fuse-link, medium voltage, 3 A, AC 11.5 kV, 425 x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 31.5AMP 2" AIR FUSE 3.6ADOH4631.5 EATON ELECTRIC Air fuse-link, medium voltage, 3 A, AC 11.5 kV, 425 x..

3.6KV 31.5AMP 2" AIR FUSE

3.6ADOH4631.5

EATON - MOELLER

3 Pcs.

Air fuse-link, medium voltage, 3 A, AC 11.5 kV, 425 x 76.2 mm, back-up, BS, no striker 3.6KV 31.5AMP 2" AIR FUSE 3.6KV 31.5Amp 2" '46' Air Fuse - Air fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker Fuse, Air fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker, cylindrical with offset bolted tags, protection of primary side transformers, BS2692-1

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Air fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 31.5 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker, cylindrical with offset bolted tags, protection of primary side transformers, BS2692-1

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
31.5 A
Rated voltage
AC 3.6 kV
Size
51 x 192 mm
Utilization category
back-up
Status indicator
with striker
usable for size/applications
protection of primary side transformers
Standard/Approval
BS
Shape
cylindrical with offset bolted tags
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
31.5 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
60 kA
Utilization category
Other
Application
Primary side transformer protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

ETIM for 3.6ADOH4631.5 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 31.5 A
Rated voltage (EF000228) 3.6 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 40 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 254 mm
Diameter (EF000551) 51 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) British Standard
Release characteristic (EF000889) Other
Installation technique (EF001474) Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
