View larger
Images are for illustrative purposes only. Please refer to data sheet for details

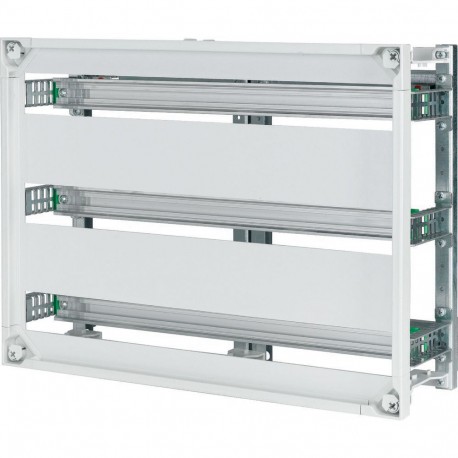

AE3-2F-V-IVS 129988 EATON ELECTRIC MCB mounting unit IVS+
AE3-2F-V-IVS
129988
EATON - MOELLER
1 Pcs.
MCB mounting unit IVS+
Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.
Automation > Panel for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲MCB mounting unit IVS+
Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.
Technical data ETIM 7.0
Distribution boards (EG000023) / Panel for distribution board (EC000264)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Panel for distribution board ([email protected] [ACN391011])
Height
375 mm
Width
500 mm
Depth
47 mm
Number of DIN rails
3
Number of modular spacings per DIN-rail
14
Type of cover
With notch
With N-PE clamp
No
With cover
Yes
With mounting plate
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 380 mm |
| Width (EF000008) | 505 mm |
| Depth (EF000049) | 120 mm |
| Number of DIN-rails (EF001232) | 3 |
| Number of modular spacings per DIN-rail (EF001233) | 14 |
| Type of covering (EF000339) | With notch |
| With N-PE clamp (EF007962) | No |
| With cover (EF000361) | Yes |
| With mounting plate (EF000118) | No |
| Termination point meter location (EF015654) | No |
