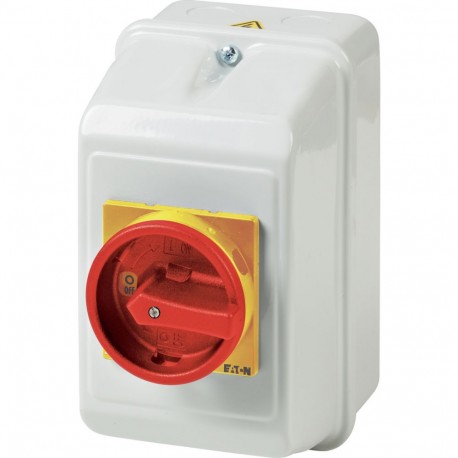

EATON - MOELLER P1-32/ST/SVB P1-32/ST/SVB 025522 EATON ELECTRIC Main switch, +steel enclosure, 3p, 32A, handle red yellow, lockable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/ST/SVB 025522 EATON ELECTRIC Main switch, +steel enclosure, 3p, 32A, handle red yellow, lockable

P1-32/ST/SVB

025522

EATON - MOELLER

1 Pcs.

Main switch, +steel enclosure, 3p, 32A, handle red yellow, lockable General Switch; 3 poles; 32A; Box mounting; Red/Yellow Lever; Lockable in position 0 (OFF) made of steel Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/32A in the steel sheet enclosure, degree of protection Front IP65, handle red with yellow locking collar, lockable with 3 padlocks, switch-disconnectors P1 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, center mounting, rear mounting, IVS service distribution board mounting

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller P1-32/ST/SVB main switch provides manual ON/OFF control enclosed in a durable housing, designed for secure deployment in demanding industrial settings. It serves as a dependable point of isolation, allowing technicians to cut off power directly at the machine interface. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Motor drive optional (EF007386): No
  • Motor drive integrated (EF006697): No
  • Voltage release optional (EF007491): No
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Interlockable (EF006281): No
  • With pre-assembled cabling (EF016444): No
  • Width (EF000008): 104 mm
  • Height (EF000040): 176 mm

More info

▲
Main switch, +steel enclosure, 3p, 32A, handle red yellow, lockable
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/32A in the steel sheet enclosure, degree of protection Front IP65, handle red with yellow locking collar, lockable with 3 padlocks, switch-disconnectors P1 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, centre mounting, rear mounting, IVS service distribution board mounting

Dimensions


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
