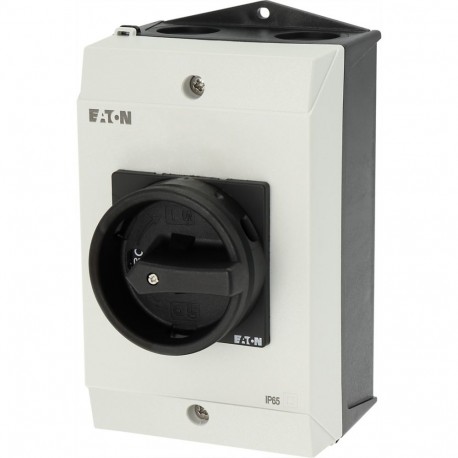

EATON - MOELLER T3-4-8344/I2/SVB-SW T3-4-8344/I2/SVB-SW 207213 Y7-207213 EATON ELECTRIC Main switch, 8-pole, 32 A, STOP function, 90 °, Lockable.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-8344/I2/SVB-SW 207213 Y7-207213 EATON ELECTRIC Main switch, 8-pole, 32 A, STOP function, 90 °, Lockable..

T3-4-8344/I2/SVB-SW

207213

Y7-207213

EATON - MOELLER

1 Pcs.

Main switch, 8-pole, 32 A, STOP function, 90 °, Lockable in the 0 (Off) position, surface mounting T3-4-8344/I2/SVB-SW Eaton Moeller® series T3 Main switch, T3, 32 A, surface mounting, 4 contact unit(s), 8-pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, 8-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-4-8344/I2/SVB-SW main switch is an industrial control device designed for safely isolating electrical circuits during maintenance or emergency interventions. These components are commonly installed in machine control panels and distribution boards to interrupt power to specific loads.

Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 8

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
207213
Model Code
T3-4-8344/I2/SVB-SW
EAN
4015082072131
Product Length/Depth
181 mm
Product Height
135 mm
Product Width
100 mm
Product Weight
0.628 kg
Certifications
CE
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60204
UL File No.: E36332
CSA
CSA File No.: 012528
VDE 0660
IEC/EN 60947-3
UL
UL 60947-4-1
CSA Class No.: 3211-05
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
