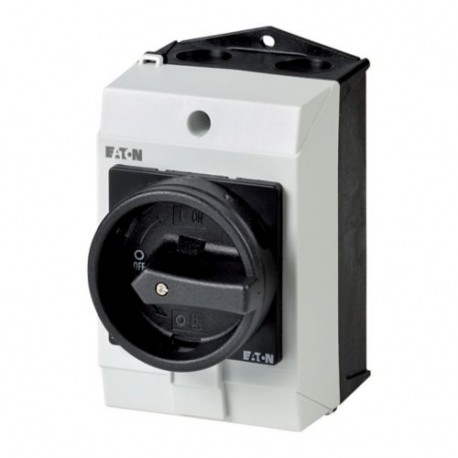

EATON - MOELLER T0-4-8344/I1/SVB-SW T0-4-8344/I1/SVB-SW 207164 Y7-207164 EATON ELECTRIC Main switch, 8-pole, 20 A, STOP function, 90 °, Lockable.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8344/I1/SVB-SW 207164 Y7-207164 EATON ELECTRIC Main switch, 8-pole, 20 A, STOP function, 90 °, Lockable..

T0-4-8344/I1/SVB-SW

207164

Y7-207164

EATON - MOELLER

1 Pcs.

Main switch, 8-pole, 20 A, STOP function, 90 °, Lockable in the 0 (Off) position, surface mounting T0-4-8344/I1/SVB-SW Eaton Moeller® series T0 Main switch, T0, 20 A, surface mounting, 4 contact unit(s), 8-pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, 8-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-4-8344/I1/SVB-SW main switch acts as a primary disconnecting device to interrupt power safely during servicing or emergencies. These switches are commonly deployed at machine inlets to ensure complete electrical isolation across multiple poles.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 8

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
207164
Model Code
T0-4-8344/I1/SVB-SW
EAN
4015082071646
Product Length/Depth
137 mm
Product Height
130 mm
Product Width
80 mm
Product Weight
0.348 kg
Certifications
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
