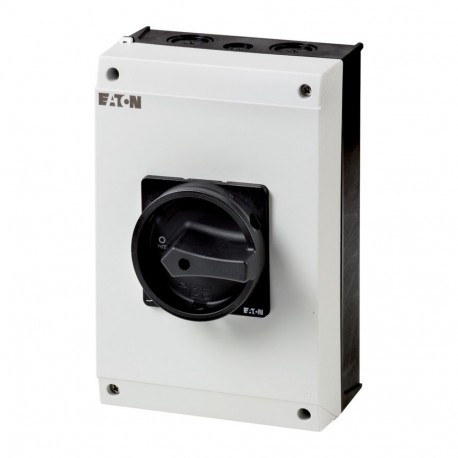

T5B-4-15682/I4/SVB-SW 207247 Y7-207247 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 63 A, STOP functi..
T5B-4-15682/I4/SVB-SW
207247
Y7-207247
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy-duty operational control, the T5B-4-15682/I4/SVB-SW 207247 Y7-207247 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 63 A, STOP functi.. securely isolates complex electrical circuits. Main switches of this caliber manage multi-phase power distribution and safeguard service personnel during machine maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 6
More info
▲General specifications
CSA Certified
VDE 0660
UL
CE
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA Class No.: 3211-05
CSA File No.: 012528
IEC/EN 60947
