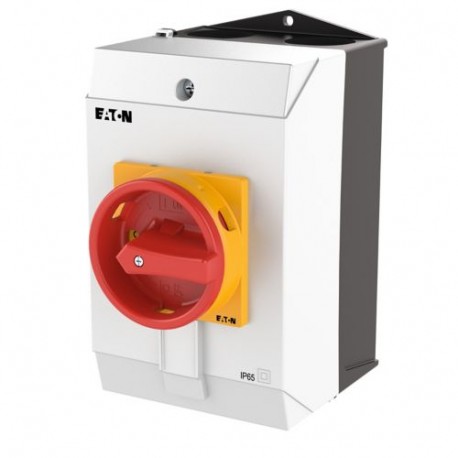

EATON - MOELLER T3-4-15164/I2/SVB T3-4-15164/I2/SVB 222900 Y7-222900 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 32 A, Emergency-Stop .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-15164/I2/SVB 222900 Y7-222900 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 32 A, Emergency-Stop ..

T3-4-15164/I2/SVB

222900

Y7-222900

EATON - MOELLER

1 Pcs.

Main switch, 6 pole + 1 N/O + 1 N/C, 32 A, Emergency-Stop function, 90 °, surface mounting T3-4-15164/I2/SVB Eaton Moeller® series T3 Main switch, T3, 32 A, surface mounting, 4 contact unit(s), 6 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 6 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch is engineered to function as the primary disconnect device for machinery and industrial power distribution systems. Factory technicians rely on these lockable emergency-stop enclosures to safely cut power to multi-pole circuits during maintenance or hazardous events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
222900
Model Code
T3-4-15164/I2/SVB
EAN
4015082229009
Product Length/Depth
181 mm
Product Height
135 mm
Product Width
100 mm
Product Weight
0.628 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
UL 508
IEC 60947
EN 60947-3
VDE
CSA File No.: 012528
CSA Class No.: 3211-07
CSA
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
UL
UL 60947-4-1
VDE 0660
UL File No.: E36332
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
