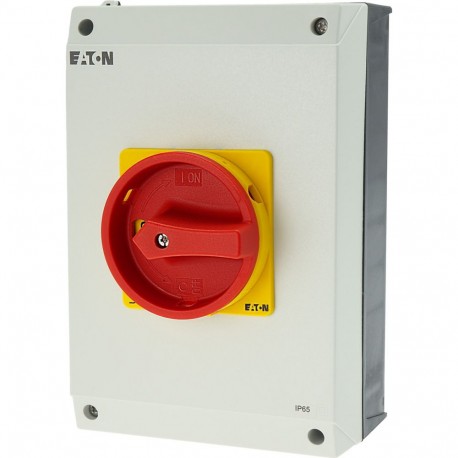

EATON - MOELLER P3-63/I4/SVB/N P3-63/I4/SVB/N 207349 Y7-207349 EATON ELECTRIC Main switch, 3 pole + N, 63 A, Emergency-Stop function, Locka.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4/SVB/N 207349 Y7-207349 EATON ELECTRIC Main switch, 3 pole + N, 63 A, Emergency-Stop function, Locka..

P3-63/I4/SVB/N

207349

Y7-207349

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 63 A, Emergency-Stop function, Lockable in the 0 (Off) position, surface mounting P3-63/I4/SVB/N Eaton Moeller® series P3 Main switch, P3, 63 A, surface mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller P3-63/I4/SVB/N main switch delivers reliable load breaking and emergency disconnection capabilities for industrial automation setups. Safety and main switches are standard additions to machine control cabinets, ensuring technicians can completely de-energize systems to prevent operational hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
207349
Model Code
P3-63/I4/SVB/N
EAN
4015082073497
Product Length/Depth
139 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.228 kg
Compliances
CE Marked
Certifications
EN 60947-3
IEC 60947
CSA Std. C22.2 No. 14-05
UL 508
VDE
IEC/EN 60204
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL File No.: E36332
CSA-C22.2 No. 94
VDE 0660
UL
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NLRV
CSA
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
