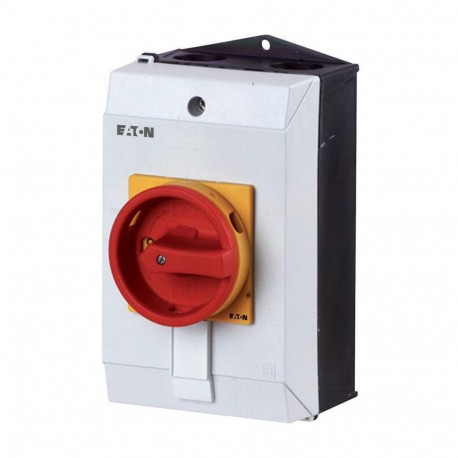

EATON - MOELLER T3-2-15679/I2/SVB T3-2-15679/I2/SVB 218995 Y7-218995 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 32 A, Emergency-Stop function.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15679/I2/SVB 218995 Y7-218995 EATON ELECTRIC Main switch, 3 pole + 1 N/O, 32 A, Emergency-Stop function..

T3-2-15679/I2/SVB

218995

Y7-218995

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 1 N/O, 32 A, Emergency-Stop function, 90 °, surface mounting T3-2-15679/I2/SVB Eaton Moeller® series T3 Main switch, 3 pole + 1 N/O, 32 A, Emergency-Stop function, 90 °, surface mounting T3-2-15679/I2/SVB Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 3 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operate and isolate electrical systems securely with the Eaton Moeller T3-2-15679/I2/SVB main switch. Main switches provide essential load-breaking and safety isolation capabilities in commercial and industrial power distribution networks, ensuring machinery can be safely de-energized.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
218995
Model Code
T3-2-15679/I2/SVB
EAN
4015082189952
Product Length/Depth
185 mm
Product Height
124 mm
Product Width
108 mm
Product Weight
0.484 kg
Certifications
CSA File No.: 012528
IEC/EN 60204
CSA
CE
IEC/EN 60947-3
UL File No.: E36332
UL Category Control No.: NLRV
CSA Class No.: 3211-07
UL 60947-4-1
CSA-C22.2 No. 94
IEC/EN 60947
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
