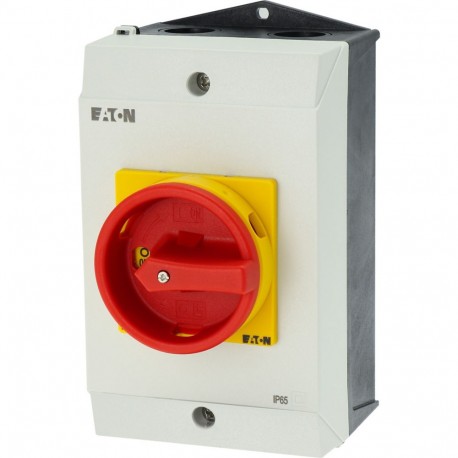

T3-2-1/I2/SVB 222746 Y7-222746 EATON ELECTRIC Main switch, 3 pole, 32 A, Emergency-Stop function, 90 °, surf..
T3-2-1/I2/SVB
222746
Y7-222746
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T3-2-1/I2/SVB is a main switch built to safely isolate electrical circuits and handle emergency stop operations in industrial control panels and distribution boards. Units of this type provide reliable manual control and load breaking capability for mechanical equipment during routine maintenance and emergency interventions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 3
More info
▲General specifications
IEC/EN 60204
UL Category Control No.: NLRV
IEC/EN 60947
VDE 0660
UL File No.: E36332
CSA
CSA-C22.2 No. 94
IEC/EN 60947-3
UL 60947-4-1
CSA File No.: 012528
CE
UL
CSA Class No.: 3211-07
