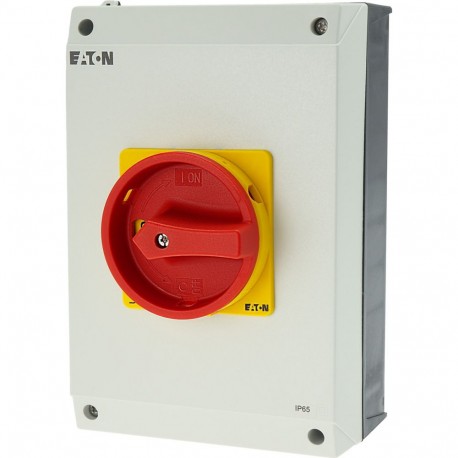

EATON - MOELLER P3-63/I4/SVB P3-63/I4/SVB 207343 Y7-207343 EATON ELECTRIC Main switch, 3 pole, 63 A, Emergency-Stop function, Lockable in.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4/SVB 207343 Y7-207343 EATON ELECTRIC Main switch, 3 pole, 63 A, Emergency-Stop function, Lockable in..

P3-63/I4/SVB

207343

Y7-207343

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 63 A, Emergency-Stop function, Lockable in the 0 (Off) position, surface mounting P3-63/I4/SVB Eaton Moeller® series P3 Main switch, P3, 63 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number P3-63/I4/SVB is a main switch configured to provide robust circuit breaking and emergency shutdown control for industrial machinery.

Heavy-duty disconnect switches are essential components in manufacturing facilities for ensuring complete electrical isolation during servicing and emergency events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
207343
Model Code
P3-63/I4/SVB
EAN
4015082073435
Product Length/Depth
139 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.065 kg
Certifications
CSA
IEC/EN 60947-3
VDE 0660
UL
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
