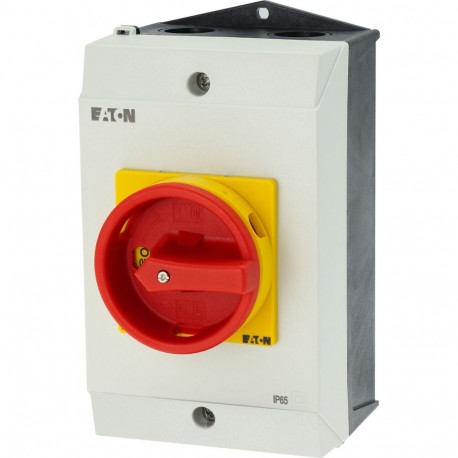

EATON - MOELLER P1-32/I2H/SVB P1-32/I2H/SVB 227868 Y7-227868 EATON ELECTRIC Main switch, 3 pole, 32 A, Emergency-Stop function, Lockable i.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2H/SVB 227868 Y7-227868 EATON ELECTRIC Main switch, 3 pole, 32 A, Emergency-Stop function, Lockable i..

P1-32/I2H/SVB

227868

Y7-227868

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 32 A, Emergency-Stop function, Lockable in the 0 (Off) position, surface mounting, hard knockout version P1-32/I2H/SVB Eaton Moeller® series P1 Main switch, P1, 32 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position, hard knockout version Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, Emergency switching off function, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller main switch, designated as part number P1-32/I2H/SVB, serves as an essential control element for isolating electrical circuits in industrial enclosures. Main switches allow technicians to securely de-energize machinery and control panels before performing maintenance or inspection routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
227868
Model Code
P1-32/I2H/SVB
EAN
4015082278687
Product Length/Depth
115 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.443 kg
Certifications
EN 60204
EN 60947
IEC 60947
VDE
CSA-C22.2 No. 94
VDE 0660
CE
IEC/EN 60204
IEC/EN 60947-3
CSA Class No.: 3211-05
UL 60947-4-1
IEC/EN 60947
CSA
UL
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
