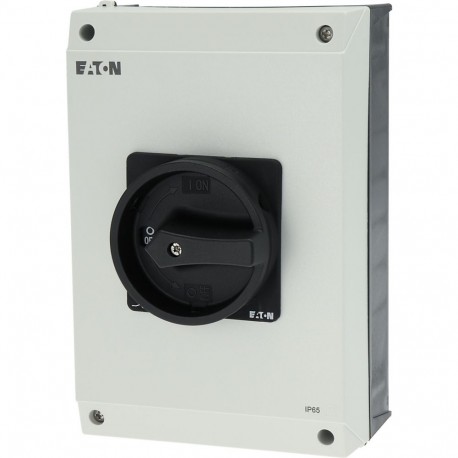

EATON - MOELLER P3-100/I5/SVB-SW P3-100/I5/SVB-SW 207374 Y7-207374 EATON ELECTRIC Main switch, 3 pole, 100 A, STOP function, Lockable in the .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/I5/SVB-SW 207374 Y7-207374 EATON ELECTRIC Main switch, 3 pole, 100 A, STOP function, Lockable in the ..

P3-100/I5/SVB-SW

207374

Y7-207374

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 100 A, STOP function, Lockable in the 0 (Off) position, surface mounting P3-100/I5/SVB-SW Eaton Moeller® series P3 Main switch, P3, 100 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A robust Eaton Moeller P3-100/I5/SVB-SW main switch acts as a primary disconnecting device to isolate electrical feeds in industrial machinery and automation setups. These components protect operators by cutting power securely before maintenance routines begin.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
207374
Model Code
P3-100/I5/SVB-SW
EAN
4015082073749
Product Length/Depth
169 mm
Product Height
280 mm
Product Width
200 mm
Product Weight
1.5 kg
Certifications
CSA
UL
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
