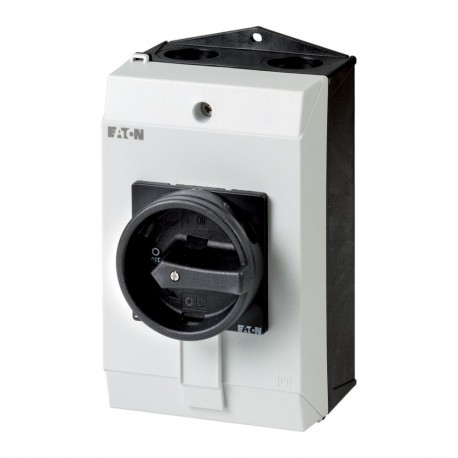

EATON - MOELLER T3-1-102/I2/SVB-SW T3-1-102/I2/SVB-SW 207199 Y7-207199 EATON ELECTRIC Main switch, 2 pole, 32 A, STOP function, 90 °, Lockable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-102/I2/SVB-SW 207199 Y7-207199 EATON ELECTRIC Main switch, 2 pole, 32 A, STOP function, 90 °, Lockable ..

T3-1-102/I2/SVB-SW

207199

Y7-207199

EATON - MOELLER

1 Pcs.

Main switch, 2 pole, 32 A, STOP function, 90 °, Lockable in the 0 (Off) position, surface mounting T3-1-102/I2/SVB-SW Eaton Moeller® series T3 Main switch, T3, 32 A, surface mounting, 1 contact unit(s), 2 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, 2 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The T3-1-102/I2/SVB-SW Eaton Moeller main switch provides secure power isolation for machinery control enclosures and industrial automation lines. Main switches allow operators to cut electrical feeds manually before performing maintenance, safeguarding technicians against accidental energization. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
207199
Model Code
T3-1-102/I2/SVB-SW
EAN
4015082071998
Product Length/Depth
181 mm
Product Height
115 mm
Product Width
100 mm
Product Weight
0.485 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CE
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60204
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
