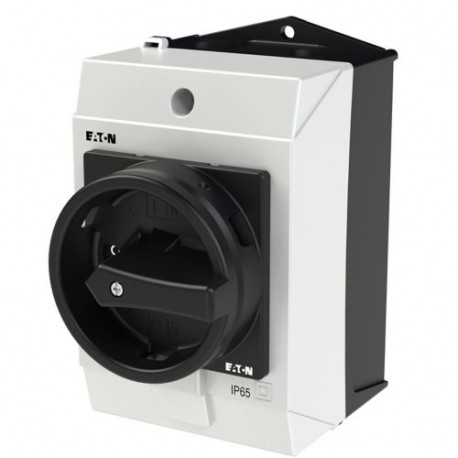

T0-1-8200/I1/SVB-SW 207146 Y7-207146 EATON ELECTRIC Main switch, 1 pole, 20 A, STOP function, 90 °, Lockable..
T0-1-8200/I1/SVB-SW
207146
Y7-207146
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T0-1-8200/I1/SVB-SW main switch offers secure lockout capabilities and dependable circuit interruption for industrial automation machinery. Personnel rely on these lockable rotary switches to perform localized equipment servicing safely.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
More info
▲General specifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
