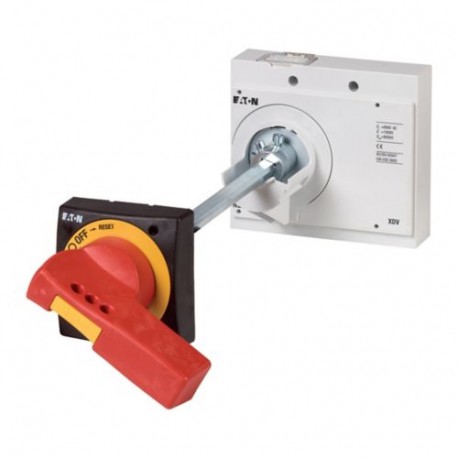

NZM4-XHBR 271842 Y7-271842 EATON ELECTRIC Main switch assembly kit, red
NZM4-XHBR
271842
Y7-271842
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for large-scale electrical installations, the Eaton Moeller NZM4-XHBR (271842) main switch assembly kit delivers robust actuation components for heavy-duty system disconnectors.
Main switch kits combine structural handles and internal linkages to guarantee dependable manual disconnection of high-amperage electrical systems. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA (Class No. 1437-01)
CSA (File No. 22086)
UL listed
UL489
UL (Category Control Number DIHS)
IEC60947
UL (File No. E140305)
CSA-C22.2 No. 5-09
CSA certified
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
Door coupling rotary handle with rotary drive
NZM...-XV4 extension shaft
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Padlock
N(S)4(-4)
Power circuit breaker
Emergency stop
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock can only be switched ON when the door is closed
With door interlock
Lockable on the 0 position on the handle using up to 3 padlocks
4X. 12
