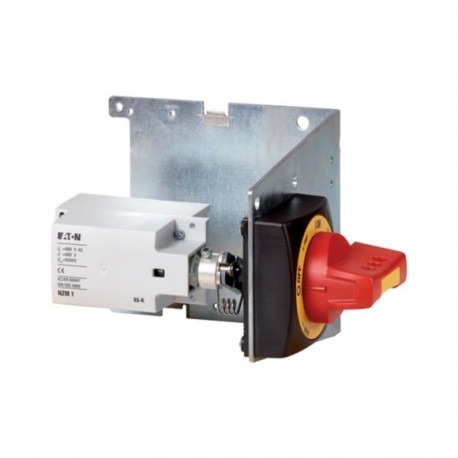

NZM2-XSRM-R 266674 Y7-266674 EATON ELECTRIC Main switch assembly kit, on the right side, red, size 2
NZM2-XSRM-R
266674
Y7-266674
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A side-mounted main switch assembly kit allows industrial automation engineers to mount operator handles on the side of electrical enclosures rather than the front door. The Eaton Moeller NZM2-XSRM-R kit contains the required mechanical components to route switching operations safely to the enclosure exterior. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL listed
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
CE marking
CSA (File No. 22086)
UL489
IEC60947
UL (File No. E140305)
CSA certified
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
Red-yellow for emergency switching off
For direct mounting of circuit-breaker and handle in the side wall of the control cabinet
Extension shaft
Door coupling rotary handle
External warning plate/marking plate in German/English
Special short extension shaft
Mounting brackets
Padlock
N(S)2(-4)
NZM2(-4)
Switch disconnector
Power circuit breaker
Door interlock extension cannot be used.
Door interlock lockable in 0 position on handle
4X. 12
