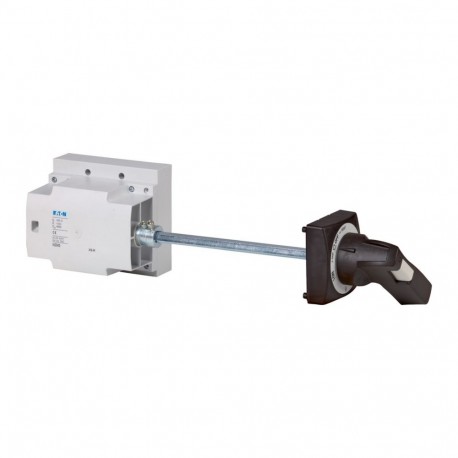

NZM3-XS-R 266646 Y7-266646 EATON ELECTRIC Main switch assembly kit, right, frame size 3
NZM3-XS-R
266646
Y7-266646
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for modular panel construction, the Eaton Moeller NZM3-XS-R main switch assembly kit provides the mechanical framework required to build robust disconnect switches inside industrial enclosures. Assembly kits of this nature allow engineers to configure custom-tailored switching mechanisms that align with strict enclosure dimensions and layout requirements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
CSA (File No. 22086)
IEC60947
CSA-C22.2 No. 5-09
CSA (Class No. 1437-01)
UL489
UL (File No. E140305)
CE marking
CSA certified
UL listed
Product specifications
Standard: black / gray
Lockable
Actuation of the switch on the control panel side wall
External warning plate/marking plate in German/English
NZM...-XV4 extension shaft
Door coupling rotary handle
Padlock
NZM3(-4)
PN3(-4)
Power circuit breaker
Door interlock lockable in the 0 position using up to 3 padlocks on the handle
4X. 12
