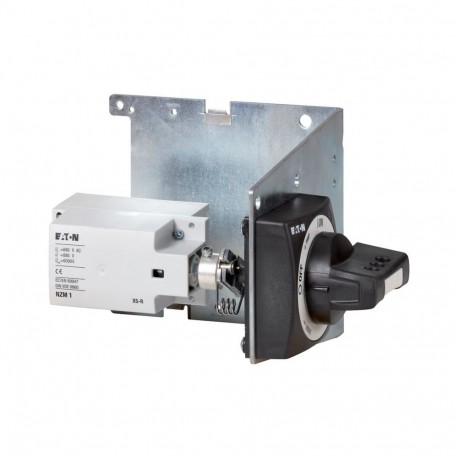

NZM1-XSM-R 266665 Y7-266665 EATON ELECTRIC Main switch assembly kit, right, frame size 1
NZM1-XSM-R
266665
Y7-266665
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NZM1-XSM-R 266665 Y7-266665 EATON ELECTRIC Main switch assembly kit, right, frame size 1 provides the necessary mechanical framework to mount and operate frame size 1 circuit breakers. Such assembly kits facilitate the integration of industrial disconnect switches into control cabinets with specific side-mounting layout constraints.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL (File No. E140305)
UL (Category Control Number DIHS)
IEC60947
UL listed
UL489
CSA (File No. 22086)
CSA certified
CE marking
CSA-C22.2 No. 5-09
Product specifications
Lockable
For direct mounting of circuit-breaker and handle in the side wall of the control cabinet
Door coupling rotary handle
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Mounting brackets
Extension shaft
Padlock
N(S)1(-4)
PN1(-4)
Power circuit breaker
Door interlock can also be modified in I position
Door interlock lockable in 0 position on handle
Narrowest minimum clearance between enclosure side plates of control panel and circuit breaker is defined by mounting bracket.
4X. 12
