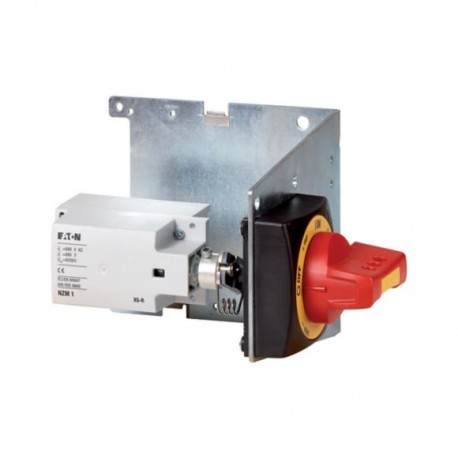

NZM1-XSRM-L 266671 Y7-266671 EATON ELECTRIC Main switch assembly kit, on the left side, red, size 1
NZM1-XSRM-L
266671
Y7-266671
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for left-hand mounting configurations, the NZM1-XSRM-L 266671 Y7-266671 EATON ELECTRIC Main switch assembly kit, on the left side, red, size 1 enables secure external operation of internal circuit protection devices. Assembly kits of this type ensure proper mechanical alignment and safety compliance across diverse industrial enclosure layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Red
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
IEC60947
UL listed
UL (File No. E140305)
CSA-C22.2 No. 5-09
CE marking
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
UL489
CSA certified
Product specifications
NZM1(-4)
PN1(-4)
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
Lockable
Red-yellow for emergency switching off
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Special short extension shaft
Door coupling rotary handle
Extension shaft
Padlock
Power circuit breaker
Emergency stop
Door interlock extension cannot be used.
Narrowest minimum clearance between enclosure side plates of control panel and circuit breaker is defined by mounting bracket.
4X. 12
