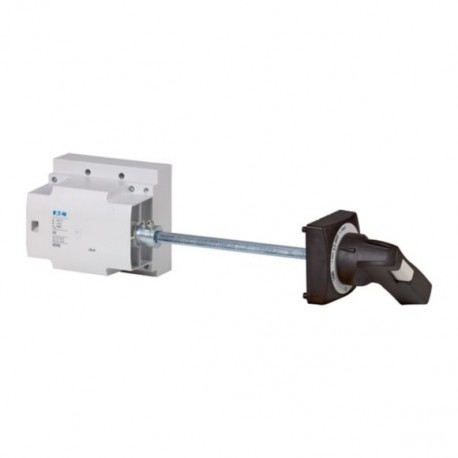

NZM3-XS-L 266643 Y7-266643 EATON ELECTRIC Main switch assembly kit, on the left side, size 3
NZM3-XS-L
266643
Y7-266643
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZM3-XS-L 266643 Y7-266643 EATON ELECTRIC Main switch assembly kit, on the left side, size 3 provides the necessary mechanical hardware to configure a door-interlocked main switch operator on the left side of an enclosure. These kits are standard in industrial control panels to ensure compliance with safety isolation mandates during maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
CSA (File No. 22086)
UL listed
UL (Category Control Number DIHS)
IEC60947
CSA (Class No. 1437-01)
UL489
UL (File No. E140305)
CE marking
CSA certified
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
Lockable
Actuation of the switch on the control panel side wall
Standard: black / gray
Door coupling rotary handle
NZM...-XV4 extension shaft
Extension shaft
External warning plate/marking plate in German/English
Padlock
N(S)3(-4)
NZM3(-4)
Power circuit breaker
Door interlock lockable in the 0 position using up to 3 padlocks on the handle
4X. 12
