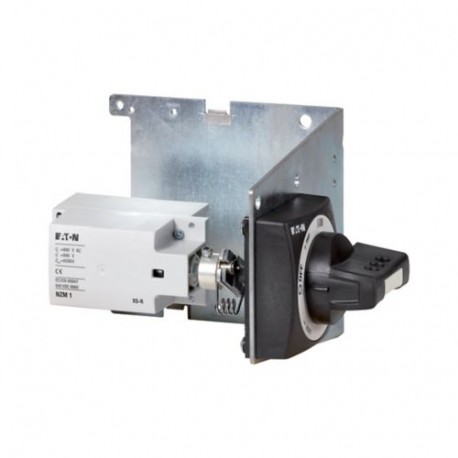

NZM1-XSM-L 266663 Y7-266663 EATON ELECTRIC Main switch assembly kit, on the left side, size 1
NZM1-XSM-L
266663
Y7-266663
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NZM1-XSM-L main switch assembly kit, on the left side, size 1 is utilized to mount and operate circuit breakers and disconnectors externally on industrial enclosures. These hardware kits ensure mechanical linkage from the internal switching device to an external panel handle for safe operational control.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
IEC60947
CSA certified
CSA (File No. 22086)
UL (Category Control Number DIHS)
UL489
CSA (Class No. 1437-01)
CE marking
UL listed
CSA-C22.2 No. 5-09
Product specifications
Lockable
For direct mounting of circuit-breaker and handle in the side wall of the control cabinet
External warning plate/marking plate in German/English
Extension shaft
Black and yellow lightning symbol
Special short extension shaft
Mounting brackets
Padlock
N(S)1(-4)
PN1(-4)
Power circuit breaker
Narrowest minimum clearance between enclosure side plates of control panel and circuit breaker is defined by mounting bracket.
Door interlock extension cannot be used.
Door interlock can also be modified in I position
4X. 12
