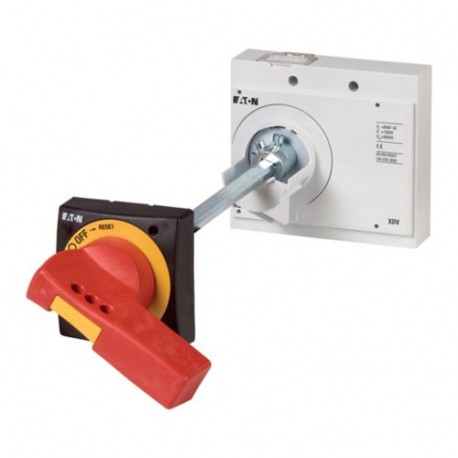

NZM3-XHBR 266634 Y7-266634 EATON ELECTRIC Main switch assembly kit, handle red, size 3
NZM3-XHBR
266634
Y7-266634
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A main switch assembly kit provides the complete mechanical hardware set needed to install an external door-coupling operator for high-current industrial switchgear. The Eaton Moeller NZM3-XHBR kit links internal circuit breakers to an external red handle, allowing secure manual operation and emergency isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Red
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA (Class No. 1437-01)
CSA-C22.2 No. 5-09
UL (File No. E140305)
CE marking
IEC60947
CSA certified
CSA (File No. 22086)
UL489
UL (Category Control Number DIHS)
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
External warning plate/marking plate in German/English
Extension shaft
NZM...-XV4 extension shaft
Door coupling rotary handle with rotary drive
Padlock
N(S)3(-4)
PN3(-4)
Power circuit breaker
Switch disconnector
Door interlock can only be switched ON when the door is closed
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
With door interlock
Lockable on the switch in the 0 position
4X. 12
