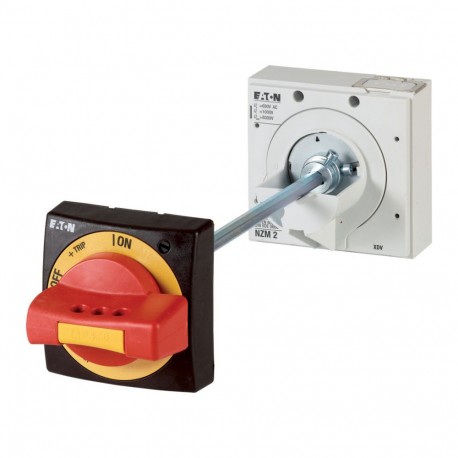

NZM2-XHBR 266633 Y7-266633 EATON ELECTRIC Main switch assembly kit, handle red, size 2
NZM2-XHBR
266633
Y7-266633
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZM2-XHBR 266633 Y7-266633 EATON ELECTRIC Main switch assembly kit, handle red, size 2 is an operator component used with industrial circuit breakers and disconnectors to provide manual control and status indication on electrical enclosures. Such assemblies facilitate safe mechanical switching during normal operations and emergency procedures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage: No
- With key lock: No
- Padlock locking: Yes
- Colour: Red
- Suitable for emergency stop: Yes
- With extension shaft: Yes
- Suitable for power circuit breaker: Yes
- Suitable for switch disconnector: Yes
- Degree of protection (NEMA): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL (File No. E140305)
IEC60947
CSA (Class No. 1437-01)
CSA (File No. 22086)
UL (Category Control Number DIHS)
CE marking
CSA certified
UL listed
CSA-C22.2 No. 5-09
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
Lockable
NZM...-XV4 extension shaft
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Extension shaft
Padlock
N(S)2(-4)
PN2(-4)
Power circuit breaker
Emergency stop
Door interlock not defeated in the locked OFF position.
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock on OFF with max. 3 padlocks
With door interlock
Lockable on the switch in the 0 position
4X. 12
