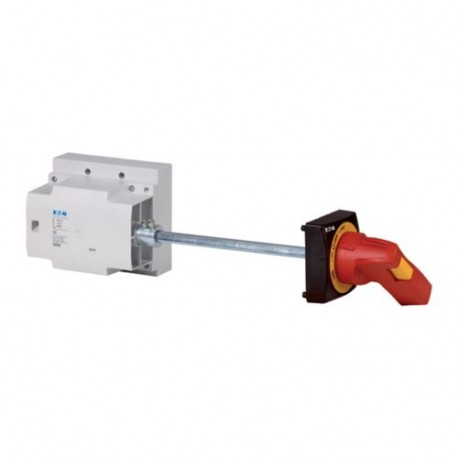

NZM4-XSR-R 289809 Y7-289809 EATON ELECTRIC Main switch assembly kit, handle red, on the right side
NZM4-XSR-R
289809
Y7-289809
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZM4-XSR-R 289809 Y7-289809 EATON ELECTRIC Main switch assembly kit, handle red, on the right side provides a high-visibility red operating handle configured for right-side mounting on large industrial switchgear enclosures. Main switch kits of this class are deployed to establish compliant emergency and disconnecting capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
CSA (File No. 22086)
CSA (Class No. 1437-01)
UL489
IEC60947
UL (File No. E140305)
CSA certified
UL (Category Control Number DIHS)
CSA-C22.2 No. 5-09
CE marking
Product specifications
NZM4(-4)
Lockable
Red-yellow for emergency switching off
Switch mounting on mounting plate
Door coupling rotary handle
Black and yellow lightning symbol
NZM...-XV4 extension shaft
Padlock
Power circuit breaker
Switch disconnector
4X. 12
