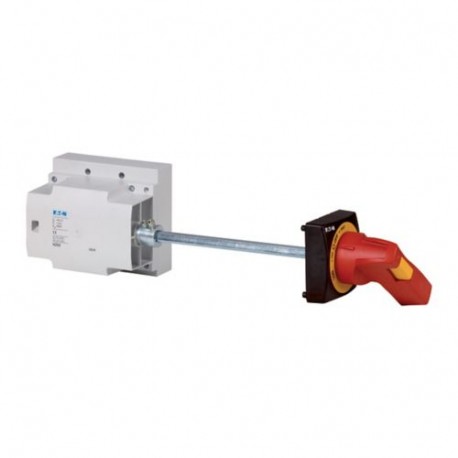

NZM4-XSR-L 289808 Y7-289808 EATON ELECTRIC Main switch assembly kit, handle red, on the left side
NZM4-XSR-L
289808
Y7-289808
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An NZM4-XSR-L 289808 Y7-289808 EATON ELECTRIC Main switch assembly kit, handle red, on the left side serves as an engineered mechanical linkage kit for industrial main disconnect switches. These specialized assembly components allow panel builders to configure side-mounted operator handles tailored to specific enclosure geometries. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL (Category Control Number DIHS)
UL (File No. E140305)
CE marking
IEC60947
UL listed
CSA (File No. 22086)
CSA-C22.2 No. 5-09
CSA certified
CSA (Class No. 1437-01)
Product specifications
NZM4(-4)
Switch mounting on mounting plate
Actuation of the switch on the control panel side wall
Lockable
Door coupling rotary handle
NZM...-XV4 extension shaft
Black and yellow lightning symbol
Padlock
Switch disconnector
Emergency stop
4X. 12
