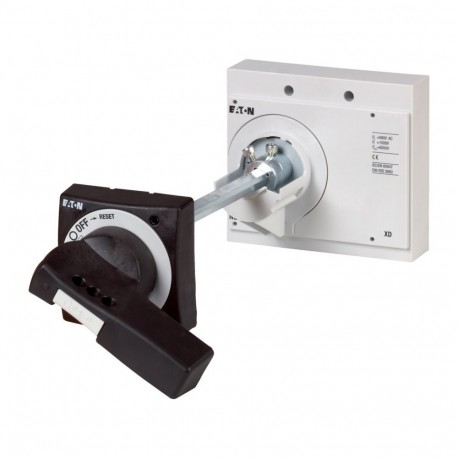

NZM3-XHB 266628 Y7-266628 EATON ELECTRIC Main switch assembly kit, handle black, size 3
NZM3-XHB
266628
Y7-266628
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NZM3-XHB 266628 Y7-266628 EATON ELECTRIC Main switch assembly kit provides the mechanical components necessary to build a complete operator interface for heavy-duty circuit protection devices. Assembly kits of this type are typically installed on electrical enclosure doors to facilitate secure main disconnect operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL (Category Control Number DIHS)
IEC60947
UL (File No. E140305)
UL listed
UL489
CSA (Class No. 1437-01)
CE marking
CSA-C22.2 No. 5-09
CSA certified
Product specifications
With black door coupling rotary handle
Door coupling rotary handle with rotary drive
External warning plate/marking plate in German/English
Black and yellow lightning symbol
Padlock
PN3(-4)
NZM3(-4)
Switch disconnector
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can only be switched ON when the door is closed
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock on OFF with max. 3 padlocks
Door interlock not defeated in the locked OFF position.
Lockable on the 0 position on the handle using up to 3 padlocks
Can also be modified in I position
4X. 12
