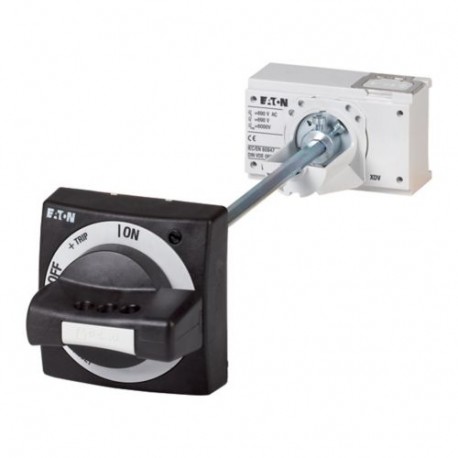

NZM2-XHB 266627 Y7-266627 EATON ELECTRIC Main switch assembly kit, handle black, size 2
NZM2-XHB
266627
Y7-266627
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A main switch assembly kit provides the complete mechanical linkage and external handle required to operate heavy-duty circuit protection devices through enclosure doors. The Eaton Moeller NZM2-XHB 266627 Y7-266627 facilitates robust manual actuation for industrial power distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA-C22.2 No. 5-09
UL489
CE marking
UL listed
CSA (File No. 22086)
CSA (Class No. 1437-01)
UL (File No. E140305)
CSA certified
IEC60947
Product specifications
PN2(-4)
N(S)2(-4)
Lockable
Door coupling rotary handle with rotary drive
Black and yellow lightning symbol
Extension shaft
External warning plate/marking plate in German/English
Padlock
Power circuit breaker
Door interlock not defeated in the locked OFF position.
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock can also be modified in I position
Door interlock on OFF with max. 3 padlocks
With door interlock
Can also be modified in I position
4X. 12
