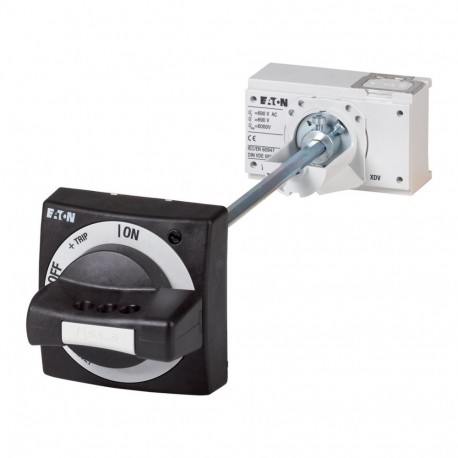

NZM1-XHB 266626 Y7-266626 EATON ELECTRIC Main switch assembly kit, handle black, size 1
NZM1-XHB
266626
Y7-266626
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NZM1-XHB 266626 Y7-266626 Eaton Electric main switch assembly kit equips electrical enclosures with a robust black operating handle for safe mechanical switching. Door-mounted rotary handle kits link directly to internal circuit protection devices to ensure reliable manual control and lockout capability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL listed
CSA-C22.2 No. 5-09
CSA (File No. 22086)
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
CE marking
UL489
UL (File No. E140305)
CSA certified
Product specifications
With black door coupling rotary handle
Black and yellow lightning symbol
Door coupling rotary handle with rotary drive
Extension shaft
NZM...-XV4 extension shaft
Padlock
PN1(-4)
NZM1(-4)
Power circuit breaker
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock not defeated in the locked OFF position.
Door interlock can also be modified in I position
Door interlock can only be switched ON when the door is closed
Door interlock on OFF with max. 3 padlocks
With door interlock
Can also be modified in I position
4X. 12
