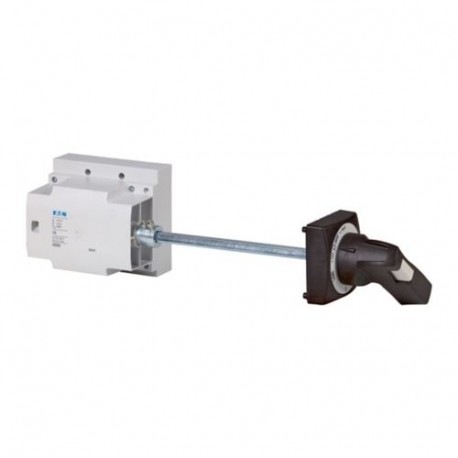

NZM4-XS-R 289807 Y7-289807 EATON ELECTRIC Main switch assembly kit, handle black, on the right side
NZM4-XS-R
289807
Y7-289807
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Configuring large-scale electrical enclosures requires dedicated hardware like the NZM4-XS-R 289807 Y7-289807 EATON ELECTRIC Main switch assembly kit, handle black, on the right side, which facilitates right-hand operator handle placement. Such assembly kits ensure that high-capacity molded case circuit breakers can be safely and ergonomically operated from outside the control panel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL listed
CSA-C22.2 No. 5-09
UL (File No. E140305)
IEC60947
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
UL489
CSA (File No. 22086)
CSA certified
Product specifications
NZM4(-4)
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
Actuation of the switch on the control panel side wall
Standard: black / gray
Lockable
Black and yellow lightning symbol
Extension shaft
Door coupling rotary handle
NZM...-XV4 extension shaft
Padlock
Switch disconnector
Door interlock lockable on OFF with max. 3 padlocks
4X. 12
