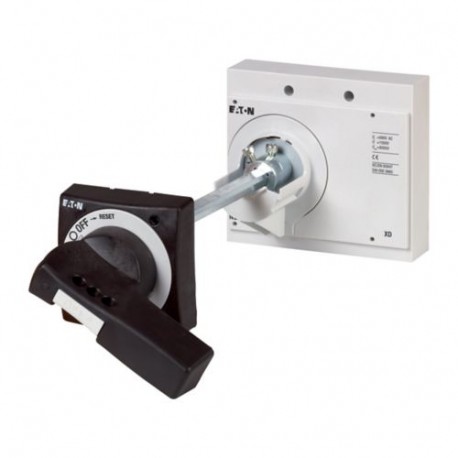

NZM4-XHB 271779 Y7-271779 EATON ELECTRIC Main switch assembly kit, black
NZM4-XHB
271779
Y7-271779
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM4-XHB Main switch assembly kit, black offers a robust mechanical framework for operating heavy-duty disconnect switches mounted inside industrial control cabinets. These assembly kits allow plant engineers to construct compliant, secure external operators with integrated padlocking capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL (File No. E140305)
CSA (File No. 22086)
UL (Category Control Number DIHS)
UL listed
CSA-C22.2 No. 5-09
IEC60947
CSA certified
CSA (Class No. 1437-01)
CE marking
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
Lockable
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Extension shaft
NZM...-XV4 extension shaft
Padlock
NZM4(-4)
Power circuit breaker
Door interlock on OFF with max. 3 padlocks
Door interlock not defeated in the locked OFF position.
Door interlock can also be modified in I position
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
With door interlock
Can also be modified in I position
4X. 12
