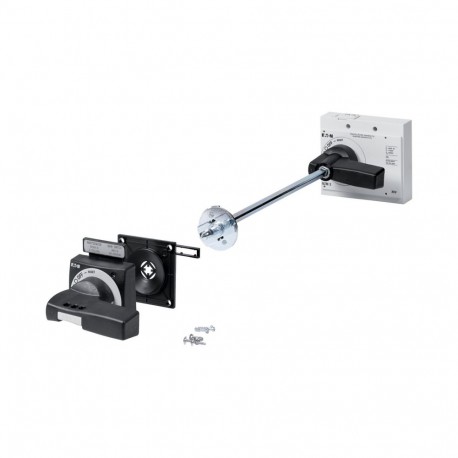

NZM3-XHB-DA 118988 Y7-118988 EATON ELECTRIC Main switch assembly kit, +additional handle, size 3
NZM3-XHB-DA
118988
Y7-118988
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy-duty electrical architectures, the Eaton Moeller NZM3-XHB-DA main switch assembly kit provides robust manual actuation for larger circuit protection devices mounted within protective enclosures.
Operators rely on these assembly kits to facilitate external control and secure lockout procedures on main industrial switchgear without compromising internal cabinet safety ratings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL (Category Control Number DIHS)
NFPA79
UL508A
UL listed
CSA (Class No. 1437-01)
CE marking
CSA-C22.2 No. 5-09
CSA certified
CSA (File No. 22086)
UL489
IEC60947
UL (File No. E140305)
Product specifications
Lockable
Extension shaft NZM…-XV6 for mounting depth 600 mm
External warning plate/marking plate in German/English
Door coupling rotary handle with rotary drive
Black and yellow lightning symbol
Padlock
PN3(-4)
N(S)3(-4)
Power circuit breaker
Door interlock not defeated in the locked OFF position.
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Can also be modified in I position
Lockable on the switch in the 0 position
Lockable on the 0 position on the handle using up to 3 padlocks
4X. 12
