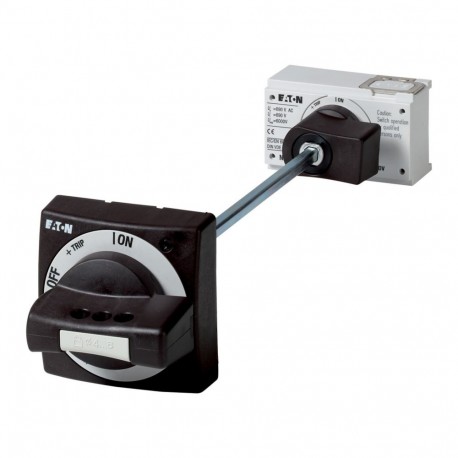

NZM1-XHB-DA 125956 Y7-125956 EATON ELECTRIC Main switch assembly kit, +additional handle, size 1
NZM1-XHB-DA
125956
Y7-125956
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller main switch assembly kit functions as a foundational mechanical interface for controlling industrial power disconnects and safety isolators. It allows operators to safely route and interrupt heavy loads within electrical control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Grey
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL (File No. E140305)
UL listed
CE marking
CSA (File No. 22086)
UL508A
CSA-C22.2 No. 5-09
Specially designed for North America
IEC60947
CSA certified
NFPA79
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
Product specifications
N1(-4)
PN1(-4)
With black door coupling rotary handle
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2
NZM1/2-XV4 shaft extension for mounting depth of 400 mm
Padlock
Switch disconnector
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock not defeated in the locked OFF position.
Lockable on the 0 position on the handle using up to 3 padlocks
Lockable on the switch in the 0 position
With door interlock
4X. 12
