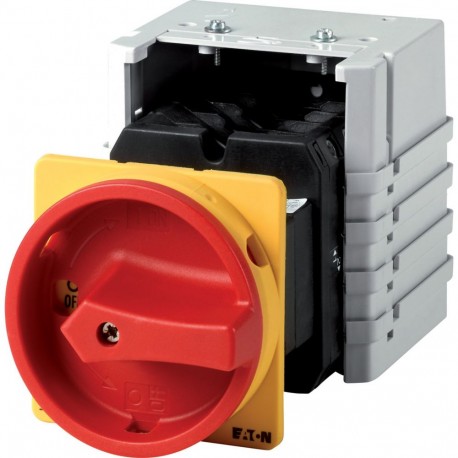

EATON - MOELLER T5-5-8345/V/SVB T5-5-8345/V/SVB 095292 Y7-95292 EATON ELECTRIC Main switch, 9-pole, 100 A, Emergency-Stop function, 90 °, re.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-5-8345/V/SVB 095292 Y7-95292 EATON ELECTRIC Main switch, 9-pole, 100 A, Emergency-Stop function, 90 °, re..

T5-5-8345/V/SVB

095292

Y7-95292

EATON - MOELLER

1 Pcs.

Main switch, 9-pole, 100 A, Emergency-Stop function, 90 °, rear mounting General Switch 9 poles 100 A 90° Bottom panel mount Handle Eaton Moeller® series T5 Main switch, T5, 100 A, rear mounting, 5 contact unit(s), 9-pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 9-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T5-5-8345/V/SVB main switch serves as an integral safety mechanism to disconnect high-amperage electrical systems during emergencies or routine servicing. These robust switches protect operators by completely isolating equipment from line voltage.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Main switch
Catalog Number
095292
Model Code
T5-5-8345/V/SVB
EAN
4015080952923
Product Length/Depth
204 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.93 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
