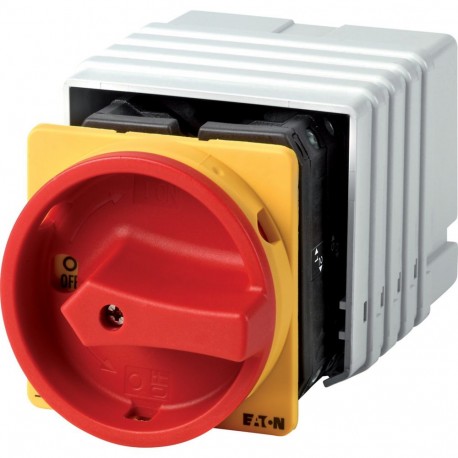

T5B-5-8345/EA/SVB 091885 Y7-91885 EATON ELECTRIC Main switch, 9-pole, 63 A, Emergency-Stop function, 90 °, f..
T5B-5-8345/EA/SVB
091885
Y7-91885
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a robust electrical isolator, this T5B-5-8345/EA/SVB Eaton Moeller main switch, 9-pole, 63 A, emergency-stop function, 90 °, f.. provides reliable power interruption for complex multi-circuit industrial machinery. Devices of this type are routinely installed on control panels to facilitate secure lockout-tagout procedures and emergency shutdowns.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 9
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA File No.: 012528
UL 60947-4-1
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
UL
CSA-C22.2 No. 94
UL File No.: E36332
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
