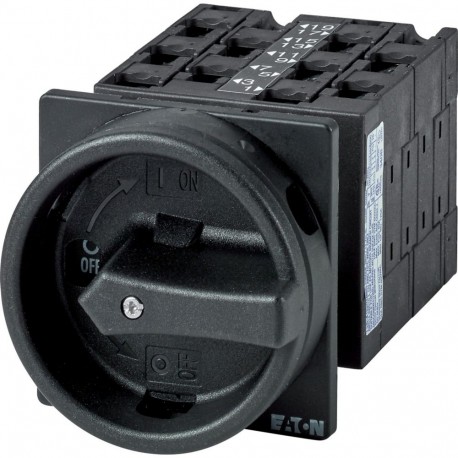

T3-5-8345/EA/SVB-SW 003171 Y7-3171 EATON ELECTRIC Main switch, 9-pole, 32 A, STOP function, 90 °, flush moun..
T3-5-8345/EA/SVB-SW
003171
Y7-3171
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable motor and circuit control, the Eaton Moeller T3-5-8345/EA/SVB-SW Main switch functions as a primary disconnect device for industrial machinery. Panel builders integrate such switches into control cabinets to ensure reliable power interruption and safe operational shutdown during routine servicing.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 9
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA
IEC/EN 60947-3
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CE
IEC/EN 60947
