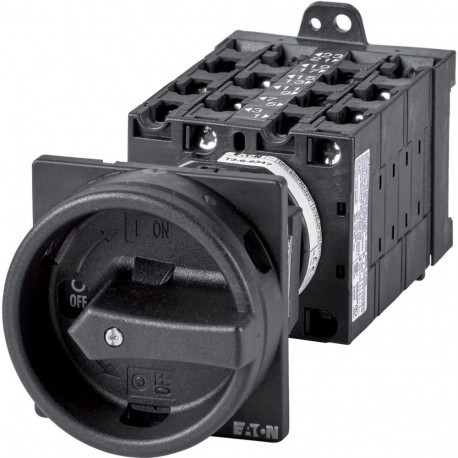

EATON - MOELLER T3-6-15168/V/SVB-SW T3-6-15168/V/SVB-SW 003230 Y7-3230 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 32 A, STOP function, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-15168/V/SVB-SW 003230 Y7-3230 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 32 A, STOP function, ..

T3-6-15168/V/SVB-SW

003230

Y7-3230

EATON - MOELLER

1 Pcs.

Main switch, 9-pole + 2 N/O + 1 N/C, 32 A, STOP function, 90 °, rear mounting General switch; 9-pole + 2 NO + 1 NC; 32; Lever Black; Lockable in position (OFF); 90 °; Mounting bottom panel Eaton Moeller® series T3 Main switch, T3, 32 A, rear mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, STOP function, With black rotary handle and locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, 9-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller main switch acts as a primary control device to disconnect entire industrial machinery setups from power sources safely. Multi-pole main switches with integrated STOP functions are essential for compliance with machine safety regulations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
003230
Model Code
T3-6-15168/V/SVB-SW
EAN
4015080032304
Product Length/Depth
179 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.383 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60204
UL Category Control No.: NLRV
UL
VDE 0660
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA
CSA Class No.: 3211-05
UL 60947-4-1
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
