View larger
Images are for illustrative purposes only. Please refer to data sheet for details

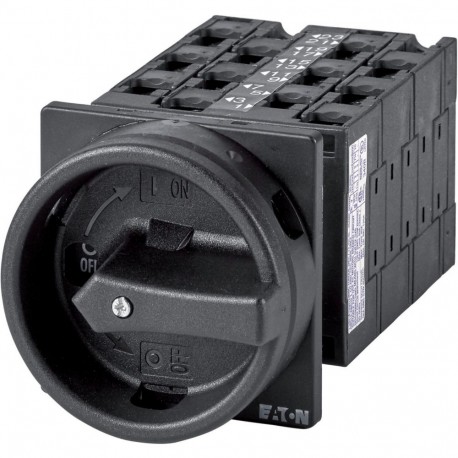

T3-6-15168/EA/SVB-SW 003227 Y7-3227 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 32 A, STOP function,..
T3-6-15168/EA/SVB-SW
003227
Y7-3227
EATON - MOELLER
1 Pcs.
Main switch, 9-pole + 2 N/O + 1 N/C, 32 A, STOP function, 90 °, flush mounting
General switch; 9-pole + 2 NO + 1 NC; 32; Lever Black; Lockable in position (OFF); 90 °; Mounting
Eaton Moeller® series T3 Main switch, T3, 32 A, flush mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, STOP function, With black rotary handle and locking ring
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, 9-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
003227
Model Code
T3-6-15168/EA/SVB-SW
EAN
4015080032274
Product Length/Depth
162 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.362 kg
Certifications
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
UL
CSA File No.: 012528
CSA-C22.2 No. 94
CSA
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
UL
CSA File No.: 012528
CSA-C22.2 No. 94
CSA
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 A |
| Rated operation power at AC-3, 400 V (EF001364) | 11 kW |
| Rated short-time withstand current lcw (EF007050) | 0.65 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 15 kW |
| Switching power at 400 V (EF009166) | 15 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 1 kA |
| Number of poles (EF001391) | 9 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Door coupling rotary drive |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 65 mm |
| Height (EF000040) | 74 mm |
| Depth (EF000049) | 162 mm |
