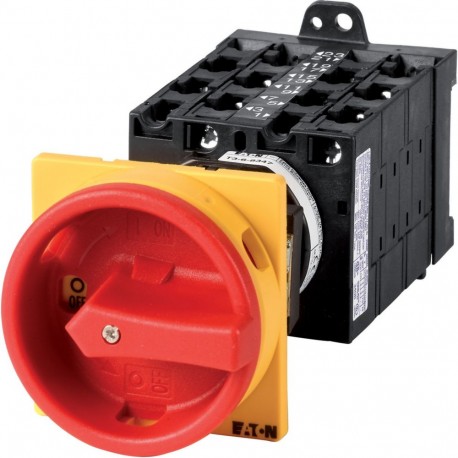

T3-6-15168/V/SVB 003229 Y7-3229 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 32 A, Emergency-Stop fun..
T3-6-15168/V/SVB
003229
Y7-3229
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for demanding industrial environments, the Eaton Moeller T3-6-15168/V/SVB functions as a robust main switch featuring integrated emergency-stop capabilities. Such rotary cam switches are routinely utilized to interrupt multiple poles simultaneously, protecting personnel and machinery during maintenance shutdowns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 9
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60204
UL 60947-4-1
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA
IEC/EN 60947
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL
UL File No.: E36332
