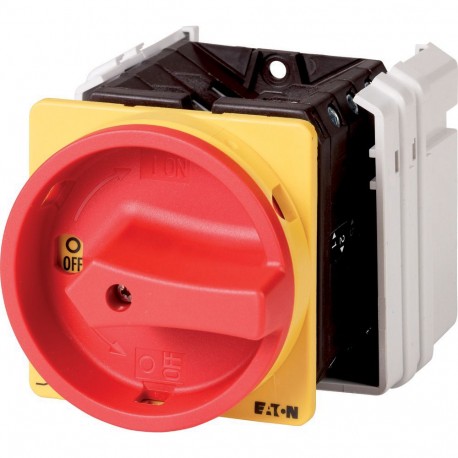

T5B-4-8344/EA/SVB 092062 Y7-92062 EATON ELECTRIC Main switch, 8-pole, 63 A, Emergency-Stop function, 90 °, L..
T5B-4-8344/EA/SVB
092062
Y7-92062
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number T5B-4-8344/EA/SVB (092062) is an 8-pole main switch featuring integrated emergency-stop capabilities for heavy electrical loads. Industrial engineers deploy these robust switches in automation systems to ensure dependable power isolation and operator safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 8
More info
▲General specifications
CSA
IEC/EN 60204
IEC/EN 60947
CSA File No.: 012528
IEC/EN 60947-3
CSA Class No.: 3211-05
UL
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CE
