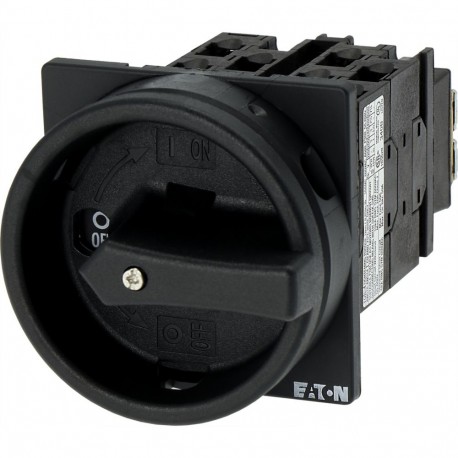

EATON - MOELLER T0-4-8344/EA/SVB-SW T0-4-8344/EA/SVB-SW 008268 Y7-8268 EATON ELECTRIC Main switch, 8-pole, 20 A, STOP function, 90 °, Lockable i.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8344/EA/SVB-SW 008268 Y7-8268 EATON ELECTRIC Main switch, 8-pole, 20 A, STOP function, 90 °, Lockable i..

T0-4-8344/EA/SVB-SW

008268

Y7-8268

EATON - MOELLER

1 Pcs.

Main switch, 8-pole, 20 A, STOP function, 90 °, Lockable in the 0 (Off) position, flush mounting General Switch 8 poles 20 A 90° Flush mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, flush mounting, 4 contact unit(s), 8-pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, 8-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch provides secure load control and lockable isolation functionality for commercial and industrial electrical installations. Panel builders use these multi-pole switches to ensure compliant shutdown procedures and reliable power interruption during servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 8
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
008268
Model Code
T0-4-8344/EA/SVB-SW
EAN
4015080082682
Product Length/Depth
130 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.166 kg
Certifications
CE
CSA
IEC/EN 60947
VDE 0660
UL
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60204
CSA File No.: 012528
CSA-C22.2 No. 94
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60947-3
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
