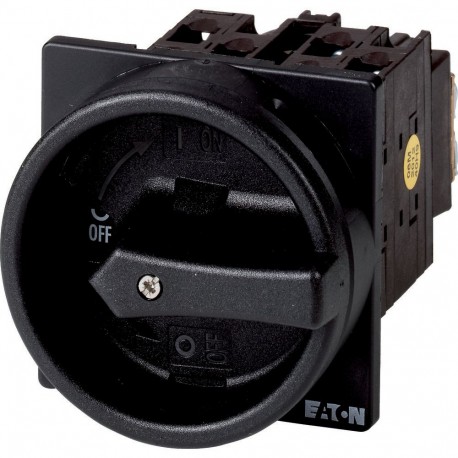

T0-4-8343/EA/SVB-SW 008262 Y7-8262 EATON ELECTRIC Main switch, 7-pole, 20 A, STOP function, 90 °, flush moun..
T0-4-8343/EA/SVB-SW
008262
Y7-8262
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T0-4-8343/EA/SVB-SW is a main switch built to safely isolate electrical circuits during maintenance or emergency procedures. Devices of this type are routinely integrated into industrial control panels and machine architectures to provide reliable power disconnection and operator protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 7
- Motor drive optional (EF007386): No
More info
▲General specifications
CE
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA File No.: 012528
UL 60947-4-1
VDE 0660
IEC/EN 60947
IEC/EN 60204
UL File No.: E36332
CSA
CSA Class No.: 3211-05
UL
