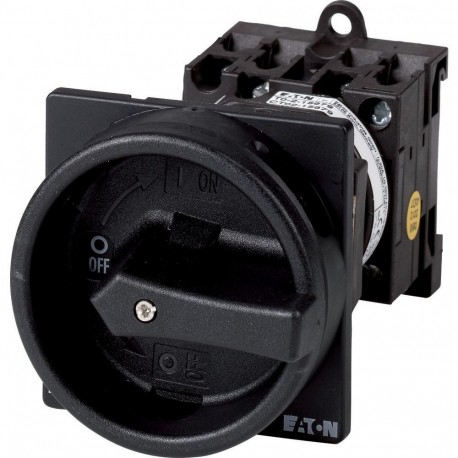

T0-4-15682/V/SVB-SW 027011 Y7-27011 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 20 A, STOP function,..
T0-4-15682/V/SVB-SW
027011
Y7-27011
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T0-4-15682/V/SVB-SW main switch is engineered to safely isolate machinery and electrical circuits from power sources during maintenance or emergency situations. Rotary disconnect switches of this type provide reliable load breaking and clear ON-OFF status visualization in demanding industrial setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 6
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA
CSA File No.: 012528
CSA Class No.: 3211-05
VDE 0660
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 94
IEC/EN 60204
UL
IEC/EN 60947-3
